DIAPHRAGM PNEUMATIC ACTUATORS

100% Made in Russia
Why choose us
Only high-quality and correct materials;



Wide variety of chosen;



Any deviations from standard sizes according to customer requirements;
Warehouse program of components - short delivery times, full and partial configuration of the product;


Operational service in production conditions and departure to the customer;


We save time on preliminary communication.
Actuator calculation and pricing presented directly on the site.
Technical characteristic
  • Diaphragm area: from 285 to 3200 сm²
  • Force of actuators: from 570 to 93 000 N
  • Nominal stroke: 16, 24, 32, 64, 80, 100, 120 mm
  • Acting: air to open, air to close or double acting
  • Adjustable spring forces: easy handling by special spring adjusting devices
  • Max.allowable supply pressure is 6 bar
  • NAMUR requirements
  • Possibility of mounting positioners of any manufacturer
  • Manual operation of diaphragm actuators

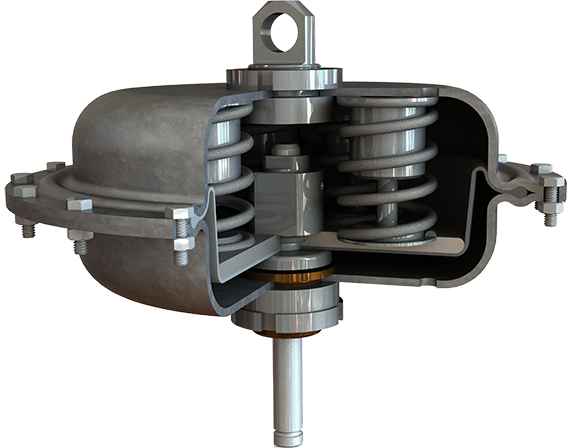

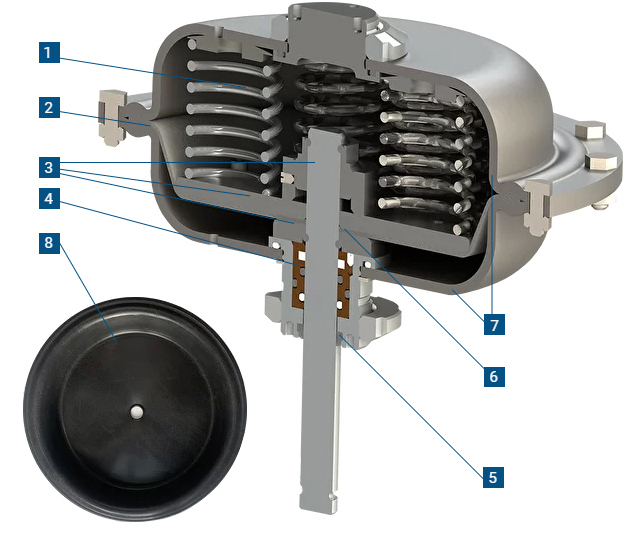

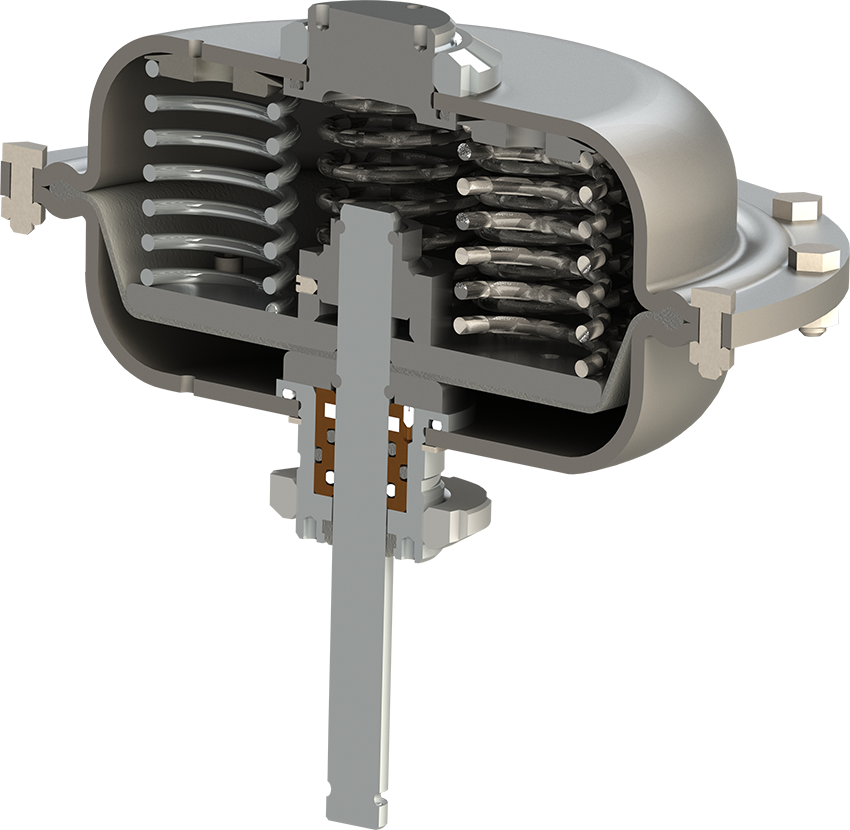

Design benefits
Galvanized springs.
The membrane does not interact with the environment (completely closed).
All internal parts are made of stainless
steels.
Bronze guide bush.
Wiper prevents dirt from entering
inside the actuator.
The diaphragm collar seals the stem.
Stamped cover are made from
low temperature carbon steel (possibly
made of stainless steel).

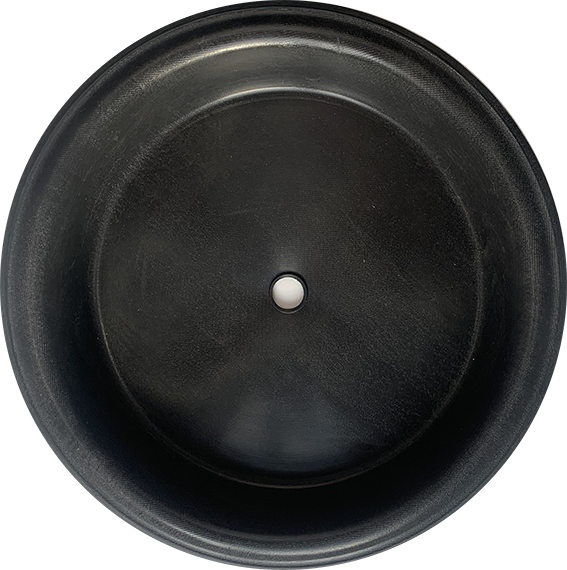

Unique diaphragm design - no bolt holes around the circumference.


1
2

3

4
5

6
7


8
2
1
3
4
7
6
5
8
9
About manufacturing
Example of diaphragm actuators
Pneumatic actuator selection

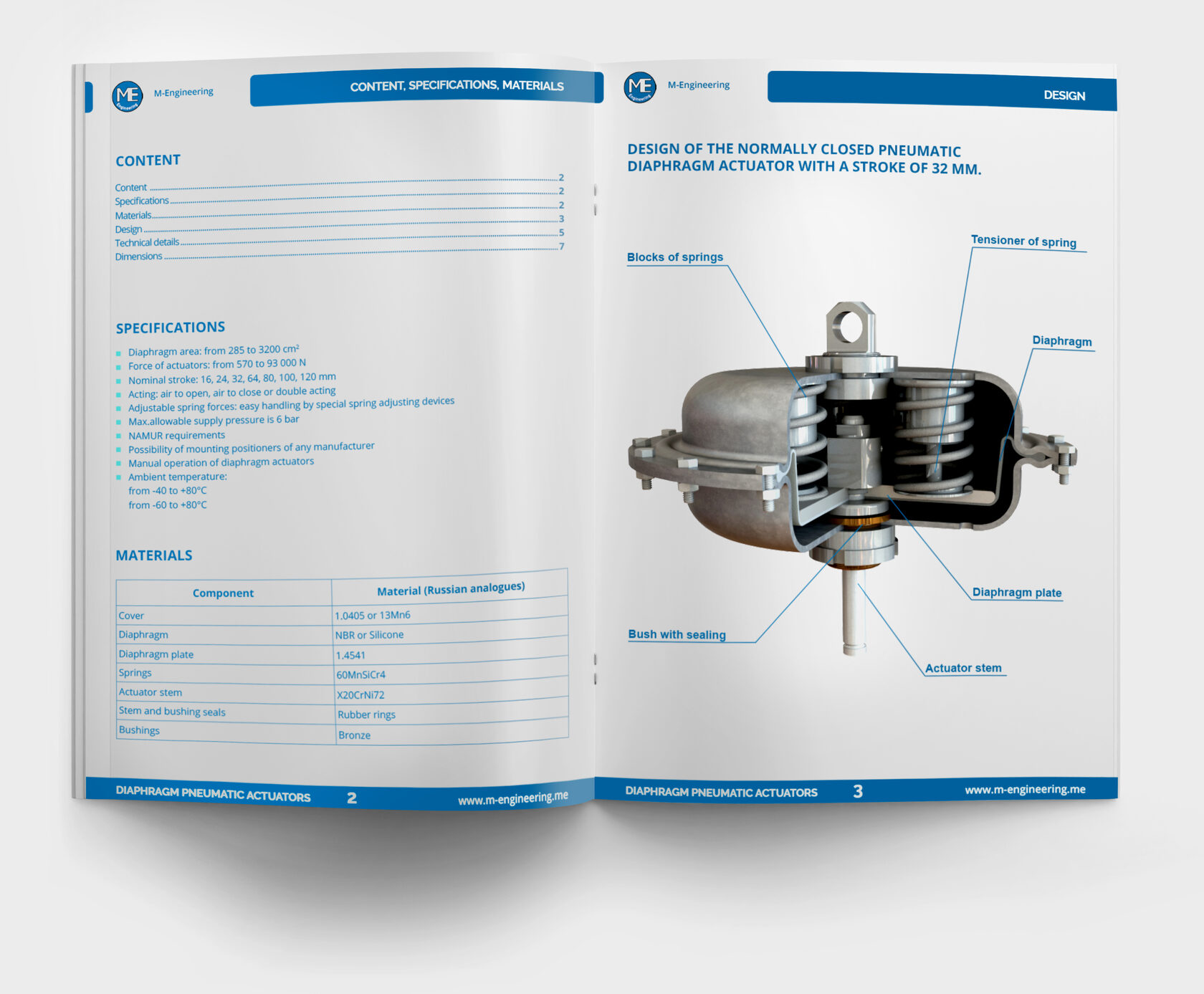

Download catalog
Download catalog
"Diaphragm pneumatic actuators"
in .pdf format
